Load life 3000~6000hours at105℃.
Used in electronic equipment whose long life would be required.
| Items | Characteristics |
|
|
|
|
|
|||
| Operating temperature range | -40℃~+105℃ |
|
|
|
|
|
|||
| Rated voltage range | 6.3V~100V DC |
|
|
|
|
|
|||
| Nominal capacitance toletance | 10μF~39000μF |
|
|
|
|
|
|||
| Capacitance toletance | ±20% (120Hz·20℃) |
|
|
|
|
|
|||
| leakage current(20℃) |
I≤0.01CV or 3μA(whichever is greater) after 2 minute I：Leakage current C：Nominal capacitance V ： Rated voltage |
|
|||||||
|
Dissipation factor (120Hz·20℃) |
Rated voltage(V) tgδ(MAX) |
6 | 10 | 16 | 25 | 35 | 50 | 63 | 100 |
| 0.22 | 0.19 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | ||
| When capacitance is more than1000μF, tgδ will add 0.02 per 1000μF addation. |
|
||||||||
|
Low temperature characteristics (lmpedance ratio max. at 120Hz) |
Rated voltage(v) |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
100 |
| Z—25℃/Z+20℃ |
4 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
|
| Z—55℃/Z+20℃ | 8 | 6 | 4 | 3 | 3 | 3 | 3 | 3 | |
| load life | After applying rated for 2000~8000 hours at 105℃ then resumed 16 hours: |
|
|
||||||
| ΦD |
5~6.3 |
8 |
|
10 |
|
≥12.5 |
|||
| Load life |
3000h |
4000h |
|
5000h |
|
6000h |
|||
| Capacitance change | Within ±20% of the initial measured value | ||||||||
| tgδ | ≤200% of the initial spectified value | ||||||||
| Leakage current | ≤initial specified value | ||||||||
| Shelf Life | After storage for 1000 hours at 105℃ then resumed 16 hours: | ||||||||
| Capacitance change | Within ±20% of the initial measured value | ||||||||
| tgδ | ≤200% of the initial spectified value | ||||||||
| Leakage current | ≤initial specified value | ||||||||
|

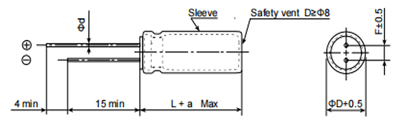

φD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
| F±0.5 | 2.0 | 2.5 | 3.5 | 5 | 5.0 | 7.5 | 7.5 | |
| φd±0.05 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | |
| α | 1.0 | 1.0 | 1.0 | 1.5 | 1.5 | 2.0 | 2.0 |
