RLZ Series, Radial Aluminum Electrolytic Capacitors, Middle and high voltage, longer life, high ripple current

PDF Download

Features

Load life 10000-12000 hours at105℃.
Used in electronic ballast, switching power supply,
Industrial measuring instruments, automotive applications, etc.

Specifications

ltem	Characteristics
Operating temperature range	-40℃~+105℃			-25℃~+105℃
Rated voltage range	160-400V			450-500V
Nominal capacitance range	1μF~220μF
Capacitance tolerance	±20% (120Hzꞏ20℃)
leakage current (20℃)	I≤0.02CV +25μA(whichever is greater) after 2minute
	I：Leakage current C：Nominal capacitance V： Rated voltage
Dissipation factor (120Hzꞏ20℃)	Rated voltage(V)	160	200	250	350	400	450	500
	tgδ(MAX)	0.15	0.15	0.15	0.20	0.20	0.20	0.20
Surge Voltage	WV	160	200	250	350	400	450	500
	SV	200	250	300	400	450	500	550
Low temperature characteristics (Impedance ratio max. at 120Hz)	Z—25℃/Z+20℃	3	3	3	5	5	6	12
Load Life	After applying rated voltage for 10000 -12000hours at 105℃ then resumed 16 hours:
	Capacitance change		Within ±20% of the initial measured value
	tgδ		≤200% of the initial specified value
	Leakage current		≤initial specified value
Shelf Life	After storage for 1000 hours at 105℃ then resumed 16 hours:
	Capacitance change		Within ±20% of the initial measured value
	tgδ		≤200% of the initial specified value
	Leakage current		≤initial specified value

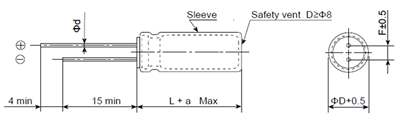

Diagram of Dimensions(mm)

φD	8	10	13	16	18
F±0.5	3.5	5.0	5.0	7.5	7.5
φd±0.05	0.5	0.6	0.6	0.8	0.8
α	1.0	1.5	1.5	2.0	2.0
