HKH HIGH RELIABILITY ELECTROLYTIC CAPACITOR

PDF Download

Features

High temperature range up to +125C Suitable for automotive equipment Load life of 1000~5000 hours
RoHS & REACH compliant, Halogen-free

Specifications

Temperature: -40°C~ +125°C Load life: 1000 ~ 5000 hrs.
Voltage: 10 ~ 450V DC Capacitance: 3.3 ~ 4700μF Tolerance: ±20% at 120Hz, 20°C
Size: 4x5.8, 5x5.8, 6.3x5.8, 6.3x7.7, 8x10.5, 10x10.5, 10x13.5, 12.5x13.5, 12.5x16, 16x16.5, 18x16.5

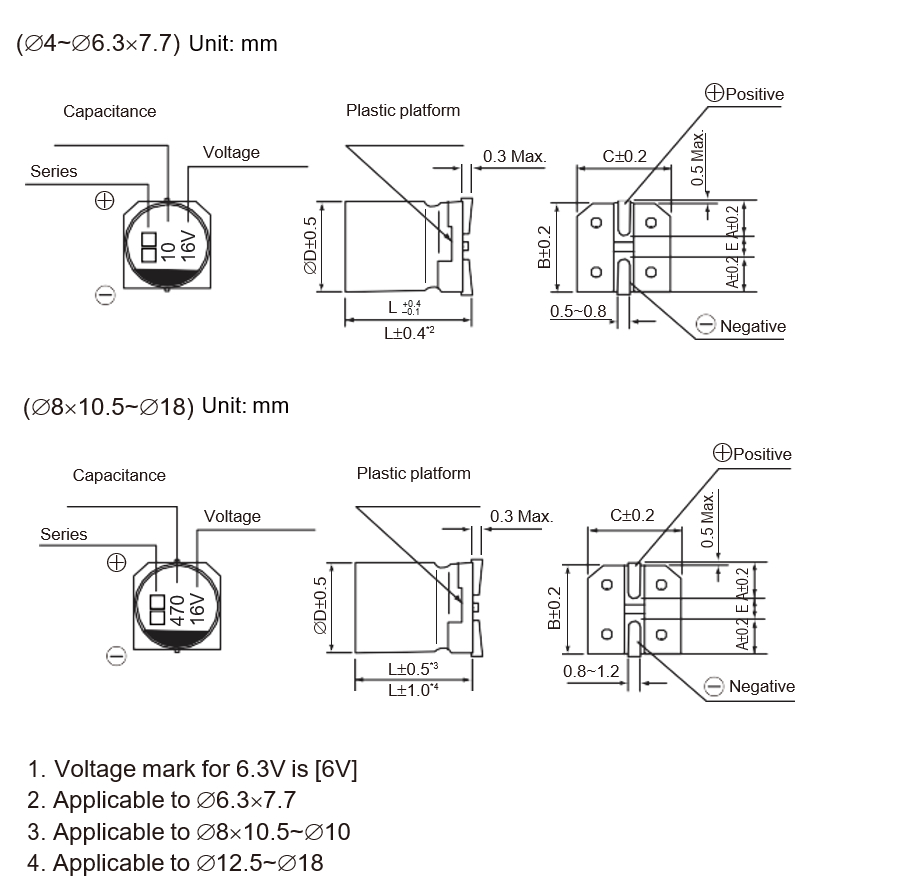

Drawing of HKH Series
