HLZ LOW IMPEDANCE ELECTROLYTIC CAPACITOR

PDF Download

Features

Low impedance with temperature range -55~+105C Load life of 1000~2000 hours
RoHS & REACH compliant, Halogen-free

Specifications

Temperature: -55°C ~ +105°C Load life: 1000 ~ 2000 hrs.
Voltage: 6.3 ~ 50V DC
Capacitance: 1~ 4700uF Tolerance: ±20% at 120Hz, 20°C
Size: 4x5.4, 5x5.4, 6.3x5.4, 6.3x7.7, 8x10.5, 10x10.5, 10x13.5,12.5x13.5, 12.5x16, 16x16.

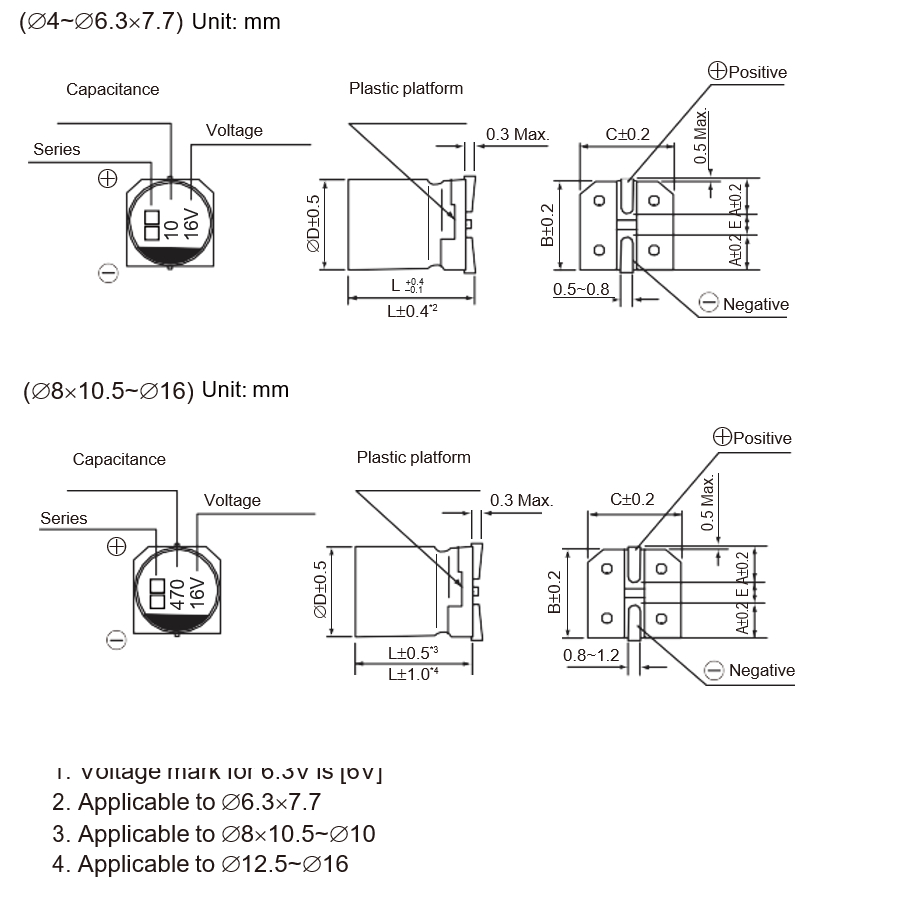

Drawing of HLZ Series
