HCA39H Series Wet Tantalum Capacitors--Hermetically Sealed

PDF Download

Features:

1. Full tantalum structure, hermetic, cylindrical, axially drawn, polarized capacitor, with excellent electrical properties.
2. Small size, large energy storage, high reliability, long life, and can withstand large ripple current.
3. Optimal 100Hz low-frequency performance, and extreme reliability.
4. Military Standard: GJB733A-96, Aerospace Standard: QJ/PWV319-2010

Application:

It excels in high-altitude environments and applications like DC/DC conversion, ECM, and motor control, offering reliability and efficiency. Ideal for aerospace, aviation, weaponry, shipbuilding, and electronics, it’s critical for defense equipment (spacecraft, satellites, etc.).
Suited for DC/pulsating circuits in military systems with strict reliability needs, especially aerospace-grade gear requiring compact capacitors.

Specifications:

1. Operating temperature range: - 55°C ~ + 125°C. Derating design refers to Application Guide 3.1
2. Withstand 1.5V reverse voltage, strong anti-radiation ability
3. Capacitance tolerance: K: ± 10% M: ± 20%
4. Electrical performance parameters such as leakage current, ESR, and low temperature resistance are shown in Table 2

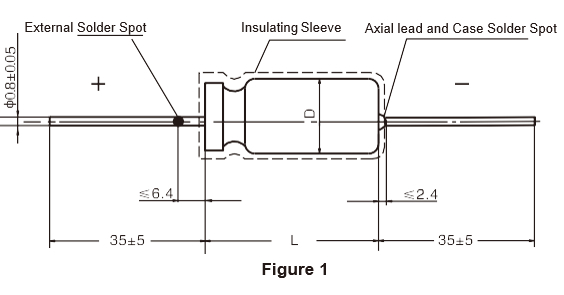

5. Outline structure and installation dimensions: see Figure 1 and Table 1

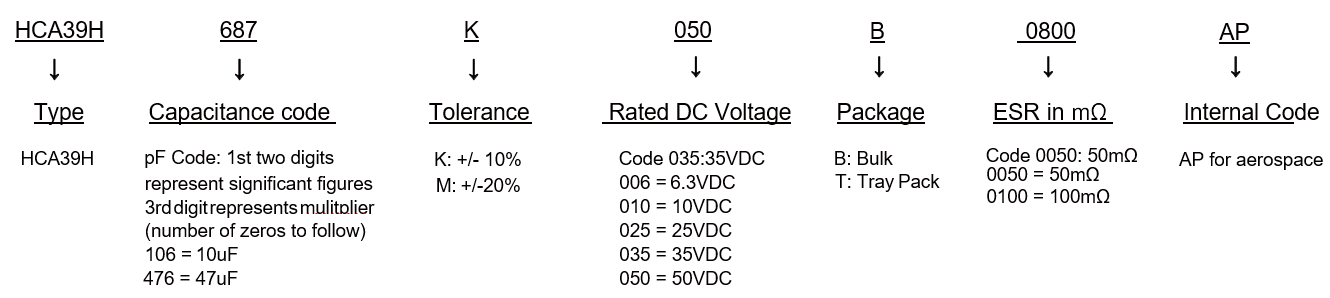

How to order:

Table 1 Dimensions and Maximum Weight of Capacitors

Note: After the outer case is covered with insulating sleeve, the diameter increases by 0.4mm max and the length L increases by 1.6mm max.
