HMB SMD High Capacitance Ultra-Low ESR Conductive Polymer Aluminum Solid Electrolytic Capacitors

PDF Download

Features

Operating with wide temperature range -55~+105°C Higher capacitance, ultra-low ESR, ripple current Load life of 2000 hours
RoHS & REACH compliant, Halogen-free

Specifications

Temperature: -55°C ~ +105°C Load life: 2000hours
Voltage: 2.5 ~ 16V DC Capacitance: 100~ 1000μF Tolerance: ±20% at 120Hz, 20°C
Size: 5x5.5/5.8, 5x8/9, 6.3x5/6, 6x5.8/6.5, 6.3x7/7.7, 6.3x9, 8x6.7/7.7, 10x12

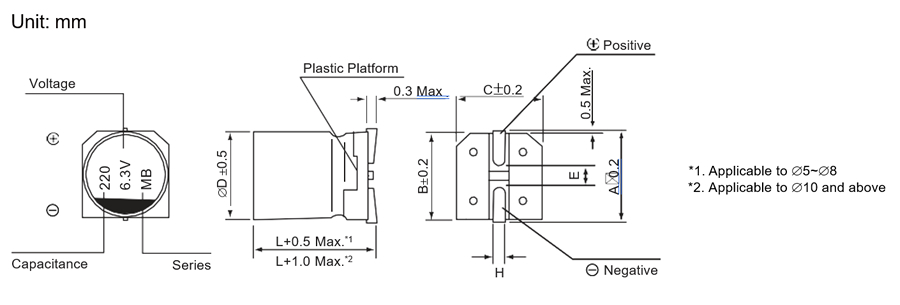

Drawing of HMB Series
