RFZ Series, Radial Aluminum Electrolytic Capacitors, Longer Life Assurance.High RC

◆ Features

Load life 8000-10000 hours at 105℃.
Used in electronic ballast, switching power supply,
Industrial measuring instruments, automotive applications, etc.

◆ Specifications

ltem Characteristics
Operating temperature range -40℃~+105℃ -25℃~+105℃
Rated voltage range 160-400V 450V
Nominal capacitance range 1μF~220μF
Capacitance tolerance ±20% (120Hz·20℃)
leakage current(20℃) I≤0.02CV +25μA(whichever is  greater) after 2minute
I:Leakage current    C:Nominal capacitance    V: Rated voltage
Dissipation factor                                                      (120Hz·20℃) Rated voltage(V) 160 200 250 350 400 450
tgδ(MAX) 0.15 0.15 0.15 0.20 0.20 0.20
Surge Voltage SV 200 250 300 400 450 500
Low temperature characteristics                                                                 (lmpedance ratio max. at 120Hz) Z—25℃/Z+20℃ 3 3 3 6 6 6
Load  Life After applying rated voltage for 8000 -10000hours at 105℃  then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value
Shelf Life After  storage  for 1000 hours at  105℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value

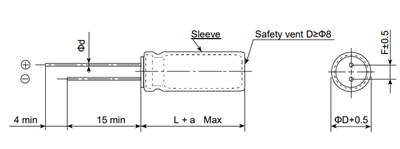

◆ Diagram of Dimensions(mm)

φD 8 10 13 16 18
F±0.5 3.5 5.0 5.0 7.5 7.5
φd±0.05 0.5 0.6 0.6 0.8 0.8
α 1.0 1.5 1.5 2.0 2.0
