RGF Series, Radial Aluminum Electrolytic Capacitors, low impedance, High ripple current

◆ Features

Load life 2000~4000 hours at105℃.
Used in electronic equipment whose long life would be required .

◆ Specifications

Items Characteristics

Operating temperature range

—40℃~+105℃

Rated voltage range

6.3V~100V DC

Nominal capacitance toletanc

15μF~4700μF

Capacitance toletance

±20% (120Hzꞏ20℃)



leakage current(20℃)

I≤0.01CV or 3μA(whichever is greater) after 2 minute

I:Leakage current C:nominal capacitance V: Rated voltage



Dissipation factor (120Hzꞏ20℃)

Rated voltage(V)

6.3 10 16 25

35

50-100

tgδ(MAX)

0.15

0.12

0.10

0.09 0.08 0.07
When capacitance is more than1000μF, tgδ will add 0.02 per 1000μF addation.

Low temperature characteristics (lmpedance ratio max. at 120Hz)

Rated voltage(v)

6.3 10 16 25 35 50-100

Z—25℃/Z+20℃

4 3 2 2 2 2

Z—40℃/Z+20℃

8 6 4 3 3 3





Load Life

After applying rated for 2000~4000 hours
at 105℃ then resumed 16 hours:



ΦD



5~6.3



8~10



≥13

Load life

2000h

3000h 4000h

Capacitance change

Within ±20% of the initial measured value

tgδ

≤200% of the initial spectified value

Leakage current

≤initial specified value



Shelf Life

After storage for 1000 hours at 105℃ then resumed 16 hours:

Capacitance change

Within ±20% of the initial measured value

tgδ

≤200% of the initial spectified value

Leakage current

≤initial specified value

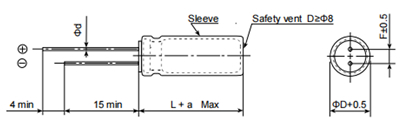

◆ Diagram of Dimensions(mm)



φD 5 6.3 8 10 13 16 18
F±0.5 2.0 2.5 3.5 5 5.0 7.5 7.5
φd±0.05 0.5 0.5 0.5 0.6 0.6 0.8 0.8
α 1.0 1.5 2.0
