Load life of 2000~5000 hours at 105℃.
Enabled high ripple current by a reduction of impedance at high frequency range.
Lowest impedance for personal computer and storage equipment .
| ltem | Characteristics | |||||
| Operating temperature range | -55℃~+105℃ | |||||
| Rated voltage range | 160-450VDC | |||||
| Nominal capacitance range | 4.7-6800uF | |||||
| Capacitance tolerance | ±20% (120Hz·20℃) | |||||
| （20℃）leakage current(20℃) | I≤0.01 CV or 3uA(whichever is greater) after 2 minute | |||||
| I：Leakage current C：nominal capacitance V： Rated voltage | ||||||
| Dissipation factor (120Hz·20℃) | Rated voltage (V) | 160 | 200 | 250 | 400 | 450 |
| tgδ (MAX) | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | |
| Surge Voltage | WV | 160 | 200 | 250 | 400 | 450 |
| Low temperature characteristics (lmpedance ratio max. at 120Hz) | Z-25℃ / Z+20℃ | 3 | 3 | 3 | 3 | 4 |
|
Z-55℃ / Z+20℃ |
6 | 6 | 6 | 6 | 7 | |
| Load Life | After applying rated voltage for 10000 -12000hours at 105℃ then resumed 16 hours: | |||||
| Capacitance change | Within ±20% of the initial measured value | |||||
| tgδ | ≤200% of the initial specified value | |||||
| Leakage current | ≤initial specified value | |||||
| Shelf Life | After storage for 1000 hours at 105℃ then resumed 16 hours: | |||||
| Capacitance change | Within ±20% of the initial measured value | |||||
| tgδ | ≤200% of the initial specified value | |||||
| Leakage current | ≤initial specified value | |||||
|
|

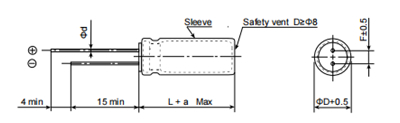

φD | 8 | 10 | 13 | 16 | 18 |
| F±0.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 | |
| φd±0.05 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | |
| α | 1.0 | 1.5 | 1.5 | 2.0 | 2.0 |
