RGR Series, Radial Aluminum Electrolytic Capacitors, 85C Standard General Products

◆Features

Load life 2000 hours at 85℃, standard size.
Used in color TV, display, VCD sets, audio sets, etc.

◆ Specifications

ltem Characteristics
Operating temperature range -40~+85℃ -25~+85℃
Rated voltage range 6.3V~100V DC 160V~500V DC
Nominal capacitance tolerance 0.1μF~33000μF
Capacitance tolerance ±20% (120Hz·20℃)
leakage current(20℃) WV≤100V  I≤0.01CV  or 3 μA after 2 minute  (whichever  is  greater)
WV >160V  I≤0.03CV+10μA after 3 minute
I:Leakage current    C:Nominal capacitance    V: Rated voltage
Dissipation factor                                                      (120Hz·20℃) Rated voltage(V) 6.3 10 16 25 35 50 63 100 160~250 350~450
tgδ 0.24 0.20 0.17 0.15 0.12 0.10 0.10 0.08 0.20 0.24
When capacitance is more than1000μF,  tgδ will add 0.02 per 1000μF addition.
Low temperature characteristics                                                                 (lmpedance ratio max. at 120Hz) Rated voltage(v) 6.3 10 16 25 35 50 63 100 160~250 160~250 450
6.3 10 16 25 35 50~100 160~250 350~400
Z—25℃/Z+20℃ 5 4 3 2 2 2 3 6 15
Z—40℃/Z+20℃ 12 10 8 5 4 3 4
Load  Life After applying rated for 2000 hours at 85℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value
Shelf  Life After  storage  for 1000 hours at  85℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value

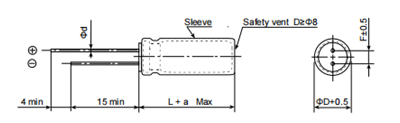

◆ Diagram of Dimensions(mm)

φD 5 6.3 8 10 13 16 18 22
F±0.5 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10
φd±0.05 0.5 0.6 0.8
α (L<20) 1.5    (L≥20) 2.0
