RIP Series, Snap-In terminal Long Life

Features

Load life of 3000hours at 105℃. Used in switching power supply.

Specifications

ltem Characteristics
Operating temperature range -40~+105℃ -25~+105℃
Rated voltage range 10V~100V DC 160V~500V DC
Nominal capacitance tolerance 47μF~47000μF
Capacitance tolerance ±20% (120Hzꞏ20℃)


leakage current (20℃)

I≤3 CVafter 5minute
I:Leakage current C:Nominal capacitance V: Rated voltage
Less than the value under table (% )


Surge Voltage

Cap(uf)\Rated voltage(V) 10~16 25~35 50~63 80~100 160~250 315~500
47~390 15 15 20
Dissipation factor (120Hzꞏ20℃) 470~3900 25 20 20 20 15 20
4700~8200 35 30 30 25
10000~22000 40 35 30
Low temperature characteristics (impedance ratio max. at 120Hz) 27000~47000 45 40 35
56000~68000 50 45
Rated voltage(v) 10 16 25 35 50 63 80 100 160~250 315~450
Z—25℃/Z+20℃ 5 5 4 4 4 3 3 3 6 8


Endurance

Z—40℃/Z+20℃ 15 15 15 15 15 15 15 12
After applying rated for 3000 hours at 105℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value


Shelf life

After storage for 1000 hours at 105℃ then resumed 16 hours:
Capacitance change Within ±15% of the initial measured value
tgδ ≤150% of the initial specified value
Leakage current ≤initial specified value

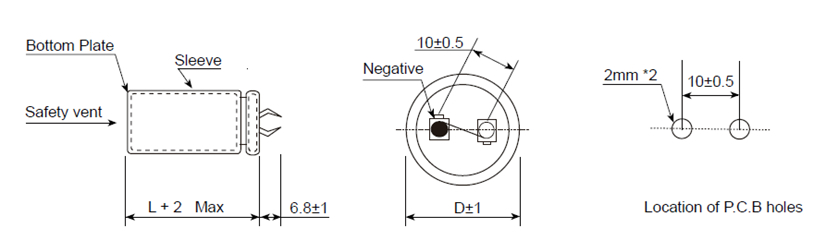

Diagram of Dimensions(mm)
