RLL Series, Radial Aluminum Electrolytic Capacitors, 130C High temperature high ripple current long life

Features

Load life 5000-6000 hours at130℃.
Used in electronic ballast, switching power supply, industrial measuring instruments, automotive applications.

Specifications

ltem Characteristics
Operating temperature range -40℃~+130℃ -25℃~+130℃
Rated voltage range 160-400V 450V
Nominal capacitance range 1.5μF~100μF
Capacitance tolerance ±20% (120Hzꞏ20℃)



Leakage current (20℃)
I≤0.02CV +25μA(whichever is greater) after 2minute
I:Leakage current C:Nominal capacitance V: Rated voltage
Dissipation factor (120Hzꞏ20℃) Rated voltage(V) 160 200 250 350 400 450
tgδ(MAX) 0.15 0.15 0.15 0.2 0.2 0.2



Low temperature characteristics (impedance ratio max. at 120Hz)
Rated voltage(V) 160 200 250 350 400 450
Z—25℃/Z+20℃ 3 3 3 5 5 6



Load Life
After applying rated voltage for 5000h<∮12.5>6000h at 130℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value



Shelf Life
After storage for 1000 hours at 105℃ then resumed 16 hours:
Capacitance change Within ±30% of the initial measured value
tgδ ≤300% of the initial specified value
Leakage current ≤initial specified value

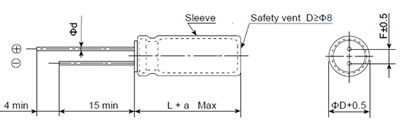

Diagram of Dimensions(mm)

  φD 5 6.3 8 10 13 16 18 22
F±0.5 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10
φd±0.05 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.8
α 1.0 1.5 2.0
