RMZ Series, Radial Aluminum Electrolytic Capacitors, Long Life Assurance,High Ripple Current

Features

Load life 5000 hours at 105℃.
Used in electronic ballast,switching power supply, industrial measuring instruments,automotive applications,etc.

Specifications

ltem Characteristics
Operating temperature range -40℃~+105℃ -25℃~+105℃
Rated voltage range 160-400V 450V
Nominal capacitance range 1μF~220μF
Capacitance tolerance ±20% (120Hzꞏ20℃)



leakage current(20℃)

I≤0.02CV +25μA(whichever is greater) after 2minute
I:Leakage current C:Normal capacitance V: Rated voltage
Dissipation factor
(120Hzꞏ20℃)
Rated voltage(V) 160 200 250 350 400 450
tgδ(MAX) 0.15 0.15 0.15 0.20 0.20 0.20



Surge Voltage

WV 160 200 250 350 400 450
SV 200 250 300 400 450 500
Low temperature characteristics (lmpedance ratio max. at 120Hz) Z—25℃/Z+20℃ 3 3 3 5 5 6



Load Life

After applying rated voltage for 5000 hours at 105℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value



Shelf Life

After storage for 1000 hours at 105℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial specified value
Leakage current ≤initial specified value

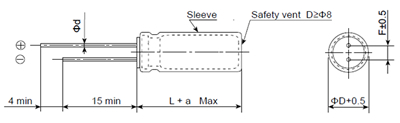

Diagram of Dimensions(mm)

φD 8 10 13 16 18
F±0.5 3.5 5.0 5.0

7.5

7.5
φd±0.05 0.5 0.6 0.6

0.8

0.8
α 1.0 1.5 1.5

2.0

2.0
