RPH Series, Radial Aluminum Electrolytic Capacitors, 125C Guaranteed Low ESR at high frequency

Features

125° Guaranteed
Low ESR at high frequency range
Mainly used in automotive, LED drive power, power supply, communication products, etc.

Specifications

Items Characteristics
Operating temperature range -55~+125℃
Rated voltage range 2.5V~35V DC
Capacitance tolerance ±20% (120Hz·20℃)
Leakage current(+20℃,max) I≤0.2CV(μA after 2 minutes)
Dissipation factor
(tanδ,at 20℃,120Hz·)
Not exceed the value specified
ESR (100KHz) Not exceed the value specified
Capacitance change Within ±20% of the value before test
Endurance Leakage current Not exceed the value specified
125°C,2000h,at rated voltage ESR Not exceed 150% of the value specified
Dissipation factor Not exceed 150% of the value specified
Capacitance change Within ±20% of the value before test
Moisture Resistance Leakage current Not exceed the value specified
Stored at 60°C,RH90~95%,1000h ESR Not exceed 150% of the value specified
Dissipation factor Not exceed 150% of the value specified

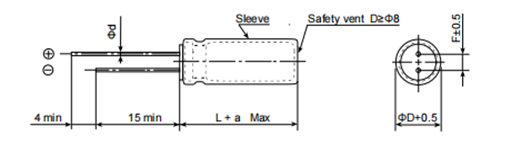

Diagram of Dimensions(mm)

φD 5 6.3 8 10
F±0.5 2.0 2.5 3.5


5.0
φd±0.05 0.45 0.5/0.6 0.6


0.6
α 1.0 1.0 1.5 1.5
