RRC Series, Radial Aluminum Electrolytic Capacitors, Low impedance,high ripple current,long life

Features

105℃,5000~10000hours,
Low impedance.
Used in electronic equipment whose long life would be required .

Specifications

Items Characteristics
Operating temperature range —40℃~+105℃
Rated voltage range 6.3V~100V DC
Nominal capacitance toletance 4.7μF~39000μF
Capacitance toletance ±20% (120Hzꞏ20℃)



leakage current(20℃)

I≤0.01CV or 3μA(whichever is greater) after 2 minute
I:Leakage current C:Normal capacitance V: Rated voltage



Dissipation factor (120Hzꞏ20℃)

Rated voltage(V) 6 10 16 25 35 50 63 100
tgδ(MAX) 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08
When capacitance is more than1000μF, tgδ will add 0.02 per 1000μF addation.



Low temperature characteristics (lmpedance ratio max. at 120Hz)

Rated voltage(v) 6.3 10 16 25 35 50 63 100
Z—25℃/Z+20℃ 4 3 2 2 2 2 2 2
Z—55℃/Z+20℃ 8 6 4 3 3 3 3 3



Load Life
After applying rated for 2000~8000 hours at 105℃ then resumed 16 hours:
ΦD 5~6.3 8-10 ≥12.5
6.3-10V 4000h 6000h 8000h
16-100V 5000h 7000h 10000h
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial spectified value
Leakage current ≤initial specified value



Shelf Life

After storage for 1000 hours at 105℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial spectified value
Leakage current ≤initial specified value

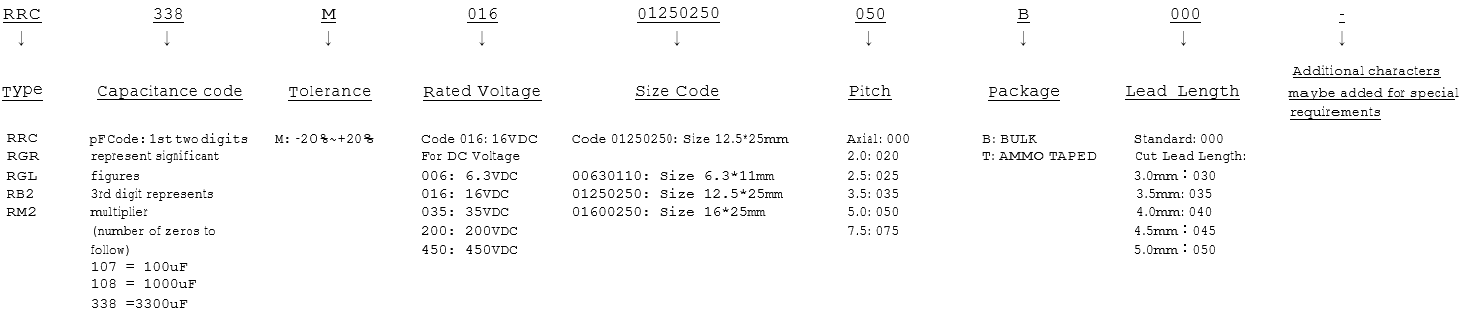

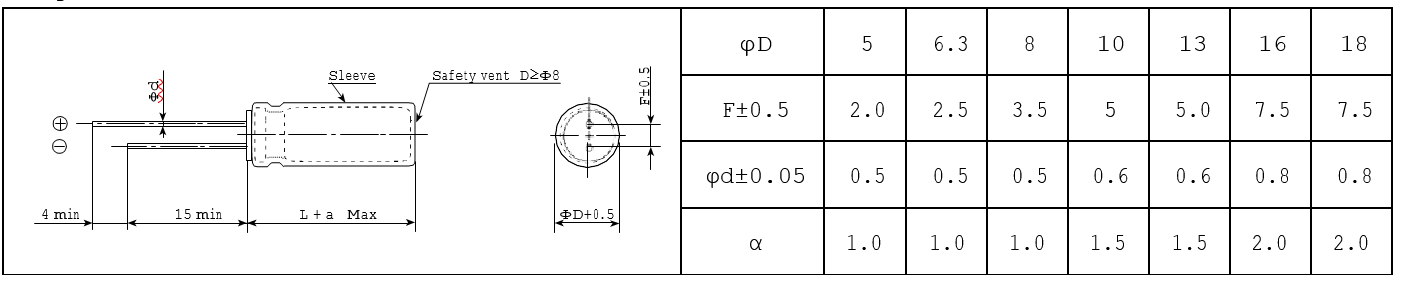

Diagram of Dimensions(mm)

  φD 5 6.3 8 10 13 16 18
F±0.5 2.0 2.5 3.5 5 5.0 7.5 7.5
φd±0.05 0.5 0.5 0.5 0.6 0.6 0.8 0.8
α 1.0 1.0 1.0 1.5 1.5 2.0 2.0
