RRL Series, Radial Aluminum Electrolytic Capacitors, 105C Standard General Products

Features

105℃,standard size.
Used in electronic ballast,switching power supply, industrial measuring instruments,automotive applications,etc

Specifications

Items Characteristics

Operating temperature range

-40~+105℃ -25~+105℃

Rated voltage range

6.3V~100V DC

160V~450V DC

Nominal capacitance toletance

0.1μF~22000μF

Capacitance toletance

±20% (120Hzꞏ20℃)

leakage current(20℃)

WV≤100V I≤0.01CV or 3 μA after 2 minute (whichever is greater)
WV >160V I≤0.03CV+10μA after 3 minute

I:Leakage current      C:Normal capacitance         V: Rated voltage

Dissipation factor (120Hzꞏ20℃)

Rated voltage(V)

6.3 10 16 25 35 50 63 100 160~250

400~450

tgδ(MAX)

0.26 0.22 0.18 0.16 0.14 0.12 0.10 0.08 0.20

0.24

When capacitance is more than1000μF, tgδ will add 0.02 per 1000μF addation.

Low temperature characteristics (lmpedance ratio max. at 120Hz)

Rated voltage(v)

6.3 10 16 25 35 50 63 100 160~250 400 450

Z—25℃/Z+20℃

5 4 3 2 2 2 2 2 4 6 15

Z—40℃/Z+20℃

10 8 6 4 3 3 3 3

Endurance

After applying rated for 2000 hours at 105 ℃ then resumed 16 hours:

Capacitance change

Within ±20% of the initial measured value

tgδ

≤200% of the initial spectified value

Leakage current

≤initial specified value

Shelf life

After storage for 1000 hours at 105 ℃ then resumed 16 hours:

Capacitance change

Within ±20% of the initial measured value

tgδ

≤200% of the initial spectified value

Leakage current

≤initial specified value

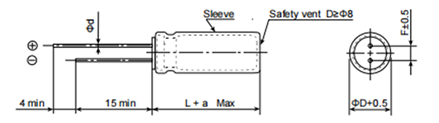

Diagram of Dimensions(mm)

φD 5 6.3 8

10

13 16 18 22

F±0.5

2.0 2.5 3.5

5.0

5.0 7.5 7.5 10

φd±0.05

0.5 0.6 0.8
α

(L<20) 1.5    (L≥20) 2.0
