RRZ Series, Radial Aluminum Electrolytic Capacitors, Long life, high ripple

Features

Load life 3000hours at 105℃.
Used in electronic ballast,switching power supply, industrial measuring instruments,automotive applications,etc.

Specifications

ltem

Characteristics

Operating temperature range -40~+105℃ -25~+105℃
Rated voltage range 160V~400V DC 450V DC
Nominal capacitance toletance 1μF~220μF
Capacitance toletance ±20% (120Hzꞏ20℃)



leakage current(20℃)

I≤0.02CV+25μA after 2 minute
I:Leakage current      C:Normal capacitance         V: Rated voltage



Surge Voltage

WV 160 200 250 350 400 450
SV 200 250 300 400 450 500



Dissipation factor (120Hzꞏ20℃)

Rated voltage(V) 160 200 250 350 400 450
tgδ 0.15 0.15 0.15 0.20 0.20 0.20
When capacitance is more than1000μF, tgδ will add 0.02 per 1000μF addation.
Low temperature characteristics (lmpedance ratio max. at 120Hz) Rated voltage(v) 160 200 250 350 400 450
Z—25℃/Z+20℃ 3 3 3 5 5 6



Endurance

After applying rated for 3000 hours
Capacitance change Within ±25% of the initial measured value
tgδ ≤200% of the initial spectified value
Leakage current ≤initial specified value



Shelf life

After storage for 1000 hours at 105 ℃ then resumed 16 hours:
Capacitance change Within ±20% of the initial measured value
tgδ ≤200% of the initial spectified value
Leakage current ≤initial specified value

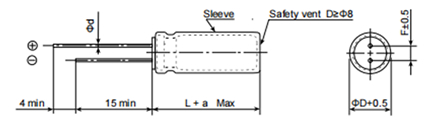

Diagram of Dimensions(mm)

  φD 5 6.3 8 10 13 16 18 22
F±0.5 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10
φd±0.05 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.8
α 1.0 1.5 2.0
