HPD19 series Laminated polymer solid aluminum electrolytic capacitor

Features

Low ESR, High ripple current
105℃ 2000H guaranteed.
High pressure products ( 50Vmax)
ROHS directive ( 2011/65/EU ) corresponding.

Specifications

ltems Characteristics
Operation Temperature Range -55℃~ + 105℃
Voltage Range 2~50V
Capacitance Range 8.2~560μF 120Hz/20℃
Capacitance Tolerance ±20%(120Hz/20℃)
Dissipation Factor (tan&) ≤Specified value at 120Hz/20℃
Leakage Current 1≤0.1C V rated voltage for 2 minutes at 20℃
ESR ≤Specified value at100 kHz/20℃
Surge Voltage ( v ) 1.15 times the rated voltage
Endurance After 2000 hours application of the rated voltage at 105°C, and after 16 hours at 20C , the product should be satisfied
Capacitance Change Within ±20% of initial value .
Dissipation Factor <200% or less of initial specified value.
Leakage Current
Hot and humid environment After 1000 hours at 60'℃ temperature, 90%~95%R.H humidity conditions, no voltage is applied, and
16 hours at 20°℃, the product should meet.
Capacitance Change +50% to -20% of the initial value
Dissipation Factor <200% or less of initial specified value.
Leakage Current

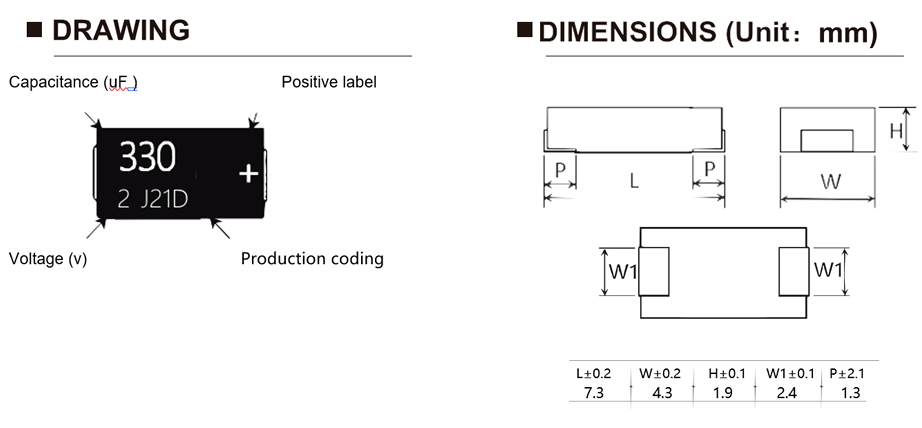

Drawing of HFS Series
