HSC LOW LEAKAGE CURRENT ELECTROLYTIC CAPACITOR

PDF Download

Features

Low leakage current (0.5~3.3μA max.)

Low cost for replacement of some tantalum applications RoHS & REACH compliant, Halogen-free

Specifications

Temperature: -40°C ~ +85°C Load life: 2000hours
Voltage: 6.3~50V DC
Capacitance: 0.1 ~ 220uF Tolerance: ±20% at 120Hz, 20°C Size: 4x5.4, 5x5.4, 6.3x5.4, 6.3x7.7

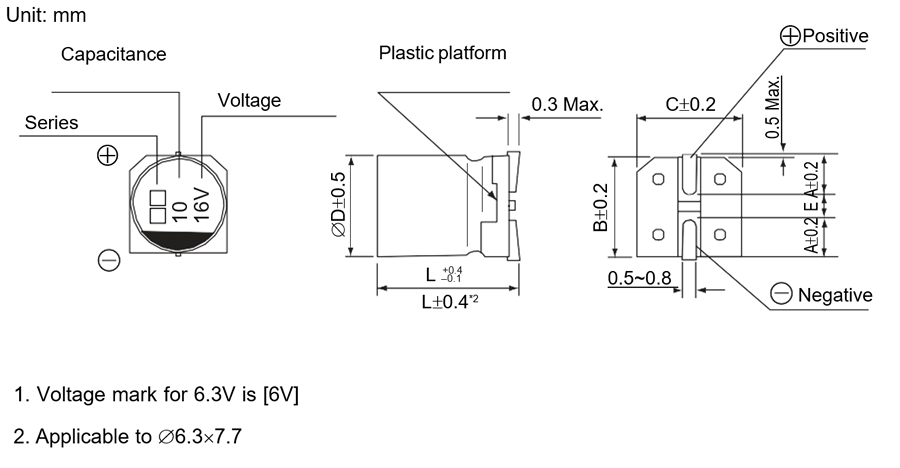

Drawing of HSC Series
