HVD Series 105 C Low Impedance Long life SMD Aluminum Electrolytic Capacitor

Features

Extra lower impedance with temperature range -55~+105 C Load life of 2000~5000 hours
RoHS & REACH compliant, Halogen-free

Specifications

Items Characteristics
Operating Temperature Range -55℃ ~ 105℃
Rated Voltage Range 6.3 V ~ 50V
Nominal Capacitance Range 1 ~ 8200 µF
Nominal Capacitance
Tolerance
±20%(20℃,120Hz)
Leakage Current I≤0.01CRVR or 3(μA)
Whichever is greater After 2 minutes’ application of rated voltage. CR: Nominal Capacitance (μF) UR: Rated voltages (V)
tgδ
Dissipation Factor (Max) 20℃, 120Hz
UR (V) 6.3 10 16 25 35 50
tgδ 0.26(0.28) 0.20(0.24) 0.16(0.20) 0.14(0.16) 0.12(0.14) 0.12(0.14)
When nominal capacitance exceeds 1000uF, add 0.02 to the value above for each 1000uF increase.

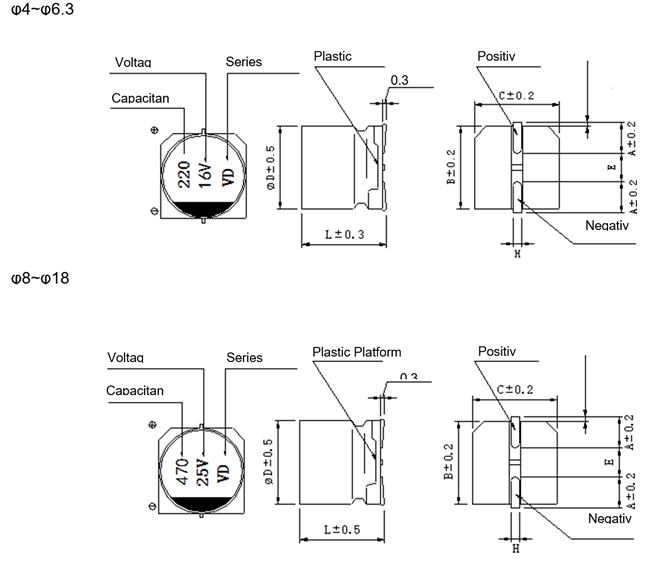

Drawing of Series HVD
