HFQ Series RF High Q Multilayer Chip Ceramic Capacitor

PDF Download

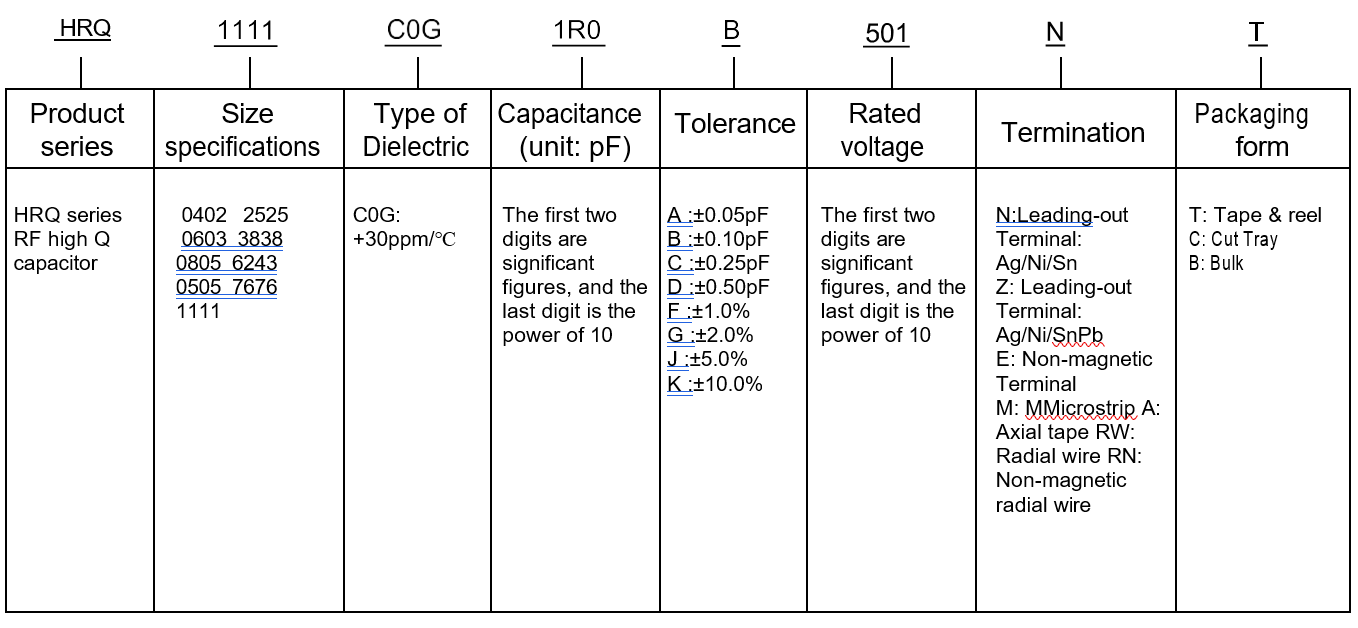

1 Capacitor characteristics and applications

Characteristics
·Size specifications are standardized and suitable for surface mount
components in hybrid integrated circuits or printed circuits;
·High Q value, ultra low ESR, high reliability;
·Low loss, high capacitance stability, high operating frequency;
·Suitable for high-frequency circuits, VHF-microwave bands, RF and amplification
circuits in various equipment;

Main performance indicators

·Temperature coefficient: C0G:0+30ppm/℃
·Capacitance drift: no more than+0.2% or +0.05pF,whichever is larger.
·Quality factor (Q value): greater than 2,000 at a frequency of 1m Hz/1k Hz
·Insulation resistance: >100000mΩ at 20℃
·Operating temperature:-55~125℃
