HRQ Series RF High Q Multilayer Chip Ceramic Capacitor

PDF Download

Capacitor characteristics and applications

Characteristics
·Size specifications are standardized and suitable for surface mount
components in hybrid integrated circuits or printed circuits
·High Q value, low ESR, high reliability
·Low loss, high capacitance stability, high operating frequency
·Suitable for high-frequency circuits, VHF-microwave bands, RF and amplification
circuits in various equipment

1.2 Main performance indicators
·Temperature coefficient: C0G: 0+30ppm/℃
·Capacitance drift: no more than+0.2% or +0.05pF,whichever is larger
·Quality factor (Q value): greater than 2,000 at a frequency of 1mHz/1kHz
·Insulation resistance: >100000mΩ at 20℃
·Operating temperature:-55~125℃

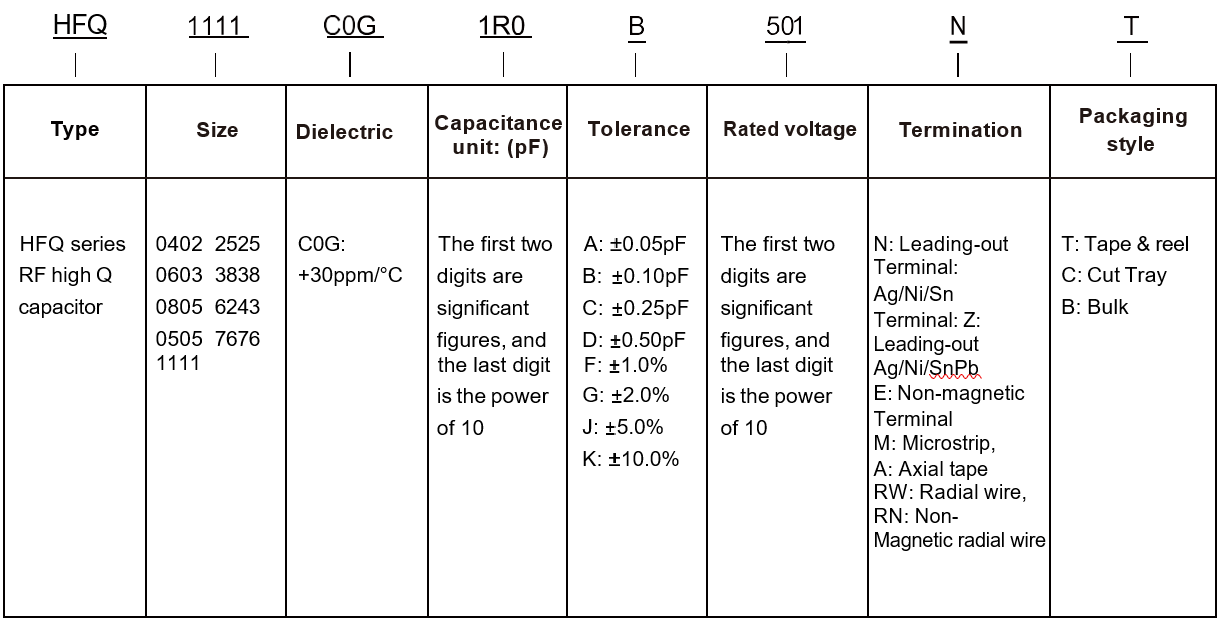

Product model naming
